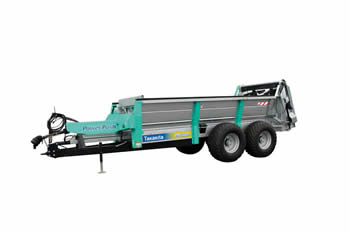

Power Push Manure Spreader


Manure spreading for rich soil
With new functions,more workability,comfort,durability.

Power Push Manure Spreader

新製品

PD Series



PD13000SGB


Features

  • Swing beater system! - Removal operation of the foreign matter is easy swing beater system. (PD9000,PD11000,PD13000 series)


  • Vertical beater with forward inclination! - Vertical beaters can be spread widely,fine grains,uniformiy.
    It is also used as a fertilizer to grassland.
    Preventing scattering to the tractor with a forward inclined vertical beater(excellent backward visibility without stone guard)
    (PD9000WS,PD9000WSG,PD11000WS,
    PD11000WSG,PD13000WSGB)
  • Smart body and low floor! - The safe driving even in a narrow farm road in the smart body width.(PD9000,PD11000,PD13000 series)
    ※ PD14500,PD16000 series is ultra low floor wide long body.
  • Durability and corrosion resistance body! - Both the side plates of the beater and the bars of the floor were galvanizinged and the corrosion resistance was further improved.
    The flooring boad is made of polyethylene.
  • Auto stop system! - Automatic control of feeding speed by sensing compost pressure.
  • Two-step pushing and double sliding floor! - Moving on the floor Smooth feeding of compost and less spillover from the side.
  • Auto quick start ! - Speedy until fertilizer application starts.

Options

  • Gate attachment (optional)
    PD11000S-WG(for PD9000S(WS),PD11000S(WS))

    PD14500-WG (for PD14500(B))

    * Compost can be transported without being spilled.
    * Float going up is prevented by double acting oil pressure.
    * As for PD13000series , PD16000B, an oil pressure gate is equipped standardly.


  • Remote control attachment (optional)
    PD-RC2(for PD9000,PD11000 series)
    PD-RC (for PD14500,PD16000 series)

    * The feeding speed of a slide floor can be adjusted ridden on a tractor.
    * Remote control attachment becomes standard equipment of PD13000 series.


Specifications

Models Maximum load
capacity
(m3)
Maximum
load
(kg)
Suitable tractors
(kW {PS})
Dimensions (mm) Weight
(kg)
Spreading
width
(m)
Remarks
Overall length Overall width Overall height
PD9000S 9 7200 51.5 - 88.3 {70 - 120} 7240 2470
Tire outer
diameter
2330
2270 2990 3.0 Horizontal double type Beaters
PD11000S 11 8800 66.2 - 99.3 {90 - 135} 8440 2500 2300 3230
PD13000SGB 13 10400 73.6 - 139.7 {100 - 190} 2820 2550 4380
PD9000WS 9 7200 51.5 - 88.3 {70 - 120} 7480 2470
Tire outer
diameter
2330
2220 3210 8.0~12.0 Vertical type Beaters
PD11000WS 11 8800 66.2 - 99.3 {90 - 135} 8680 2500 2250 3450
PD13000WSGB 13 10400 73.6 - 139.7 {100 - 190} 2820 2660 4640
PD14500 14.5 11600 73.6 - 139.7 {100 - 190} 8360 3500 2050 3600 3.0 Horizontal double type Beaters
PD14500B 3650
PD16000B 16.0 12800 88.3 - 139.7 {120 - 190} 2170 3910

*PD13000SGB, PD13000WSGB, PD14500B, and PD16000B are disk brake specifications.
*Spread width changes with kinds of compost.
* Specifications and photos may be modified without prior notification when products are improved.
